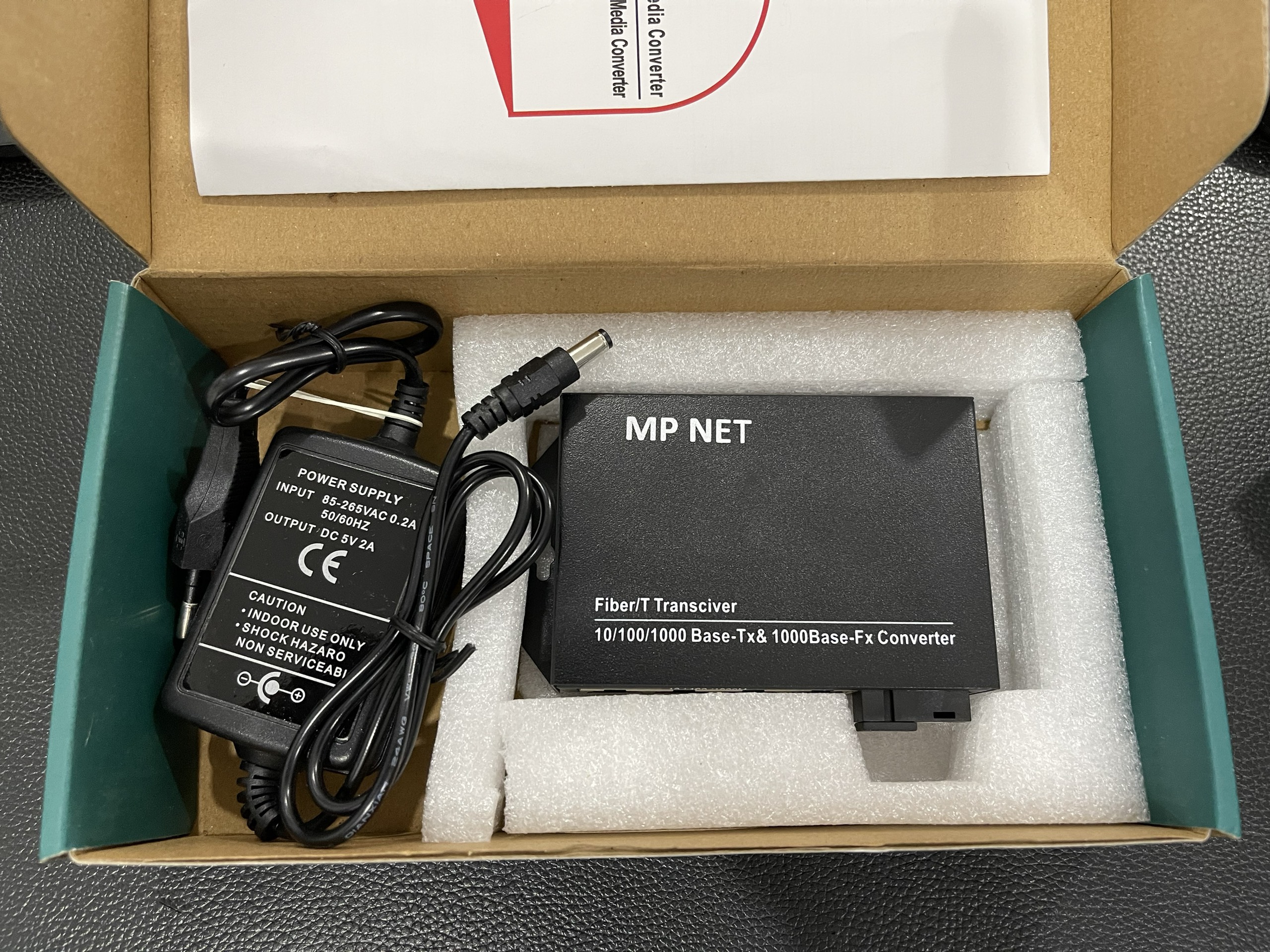

BỘ CHUYỂN ĐỔI QUANG ĐIỆN MP-M900011-11-20
Model : MP-M900011-11-20 hãng: MPNET
- Ngõ vào: Fiber Type Single-mode + Đầu Fast connect SC
- Ngõ ra: 1 PORT RJ45 Lan 10/100/1000Mbps
- Support: IIEEE 802.3, IEEE 802.3u and 100Base-FX standard data transfer
rate of 10/1000Mbps of full or half duplex operating mode
- EMI certification: CE, FCC, VCCI, C -Tick
- Optical wavelength 1310nm 1550nm
- Transmission distance 20Km
- Maximum emission power of -12.0 dBm
- Minimum transmit optical power -19.0 dBm
- Sensitivity -34.0 dBm
- Optical fiber link loss 15.0 dBm
