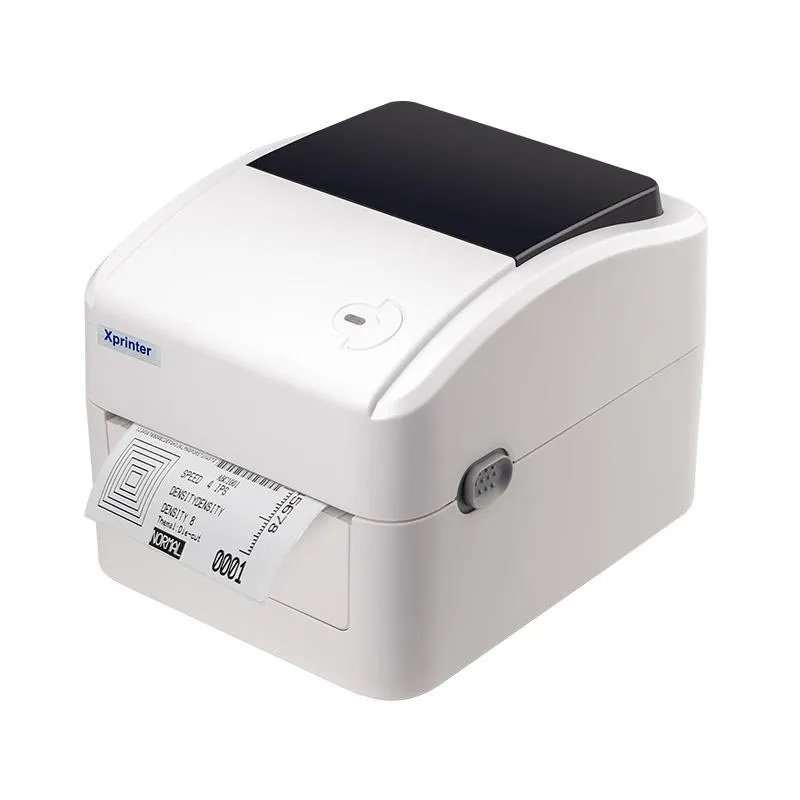

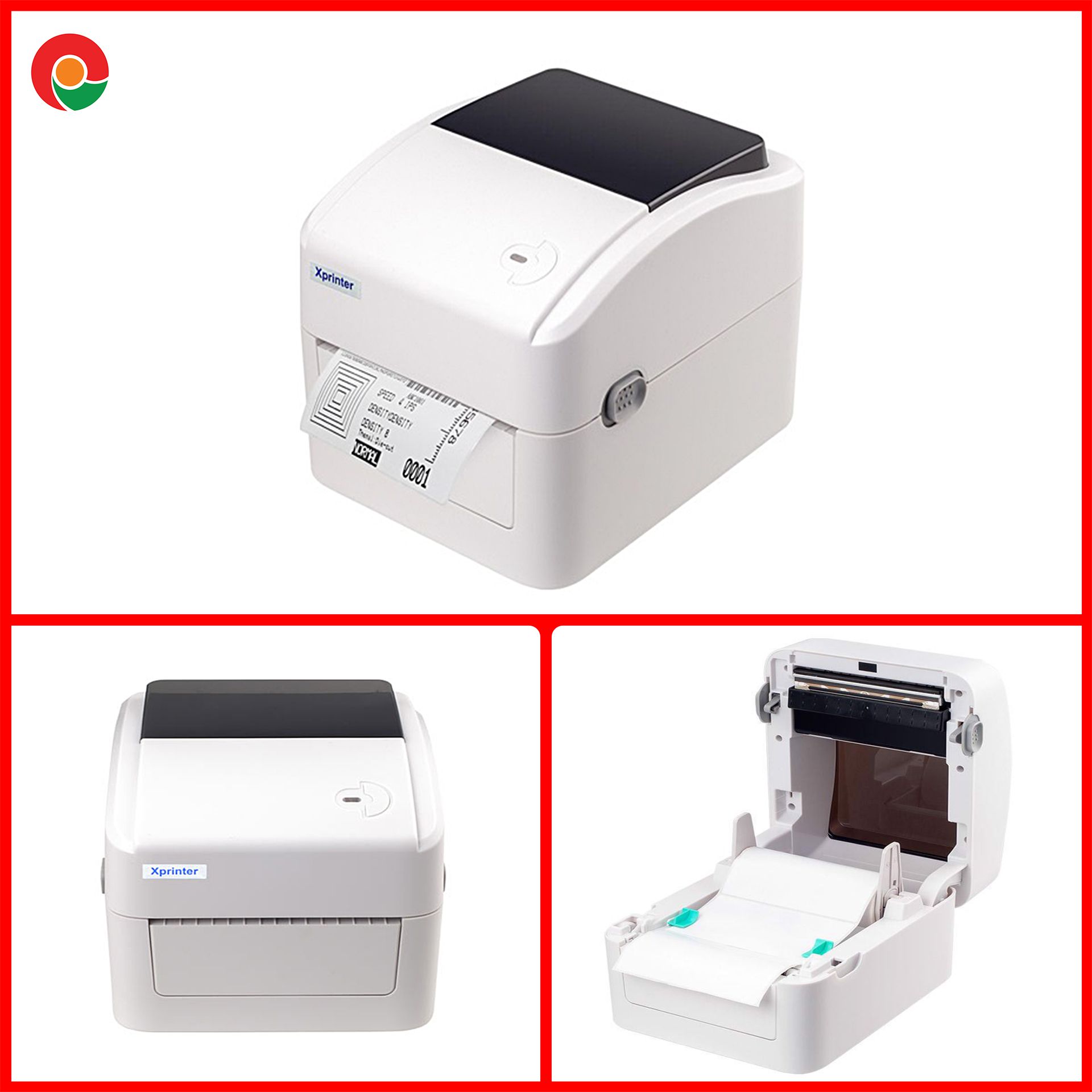

Máy in đơn hàng và nhãn vận chuyển Xprinter XP-420B có nhiều ứng dụng hữu ích trong nhiều loại doanh nghiệp và môi trường công việc khác nhau. Dưới đây là một số ví dụ về cách bạn có thể sử dụng máy in này:
Model | XP-420B | |
Printing Features | ||
Resolution | 203 DPI | |
Printing method | Direct Thermal | |
Max.print speed | 152 mm (6″) / s Max. | |
Max.print width | 108 mm (4.25”) | |
Max.print length | 1778 mm | |
Media | ||
Media type | Continuous, gap, black mark, fan-fold and punched hole | |
Media width | 25.4 mm ~ 115 mm | |
Media thickness | 0.06~0.254 mm (2.36~10mil) | |
Media core diameter | 25.4 ~ 76.2 mm (1 “~ 3 “) | |
Label length | 10 mm ~1778 mm | |
Performance Features | ||
Processor | 32-bit CPU | |
Memory | 8MB Flash Memory, 8MB SDRAM, Flash memory can be expanded to Max. 4 GB | |
Interface | Standard version: USB Optional:Lan/WIFI/Bluetooth/TF card | |
Sensors | ①Gap sensor ②Cover opening sensor ③Black mark sensor |
|
Fonts/Graphics/Symbologies | ||
Internal fonts | 8 alpha-numeric bitmap fonts, Windows fonts are downloadable from software. | |
1D bar code | Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13,EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST,GS1 DataBar, Code 11 | |
2D bar code | PDF-417, Maxicode, DataMatrix, QR code, Aztec | |
Rotation | 0°、90°、180°、270° | |
Emulaion | TSPL、EPL、ZPL、DPL | |
Physical Features | ||
Dimension | 215 mm (L) x 178 mm (W) x 155 mm (H) | |
Weight | 1.31 kg | |
Reliability | ||
Warranty | One year | |
Print head life | 30 km or first arrival first | |
Software | ||
Driver | Windows/ Linux/ Mac | |
SDK | Windows/ Android/ iOS | |
Power supply | ||
Input | AC 110-240V | |
Output | DC 24V 2.5A | |
Options | ||
Factory Options | ①Peeler ②Cutter ③RTC | |
Dealer Options | ①External paper roll holder ②Paper roll spindle ③Extension board for external paper roll holder |
|
Environmental Conditions | ||
Operation environment | 5 ~ 40°C(41~104°F),Humidity: 25 ~ 85% no condensing | |
Storage environment | -40 ~ 60°C(-40~140°F),Humidity: 10 ~ 90% no condensing |
